Medical Air Compressor
Medical Air Compressor

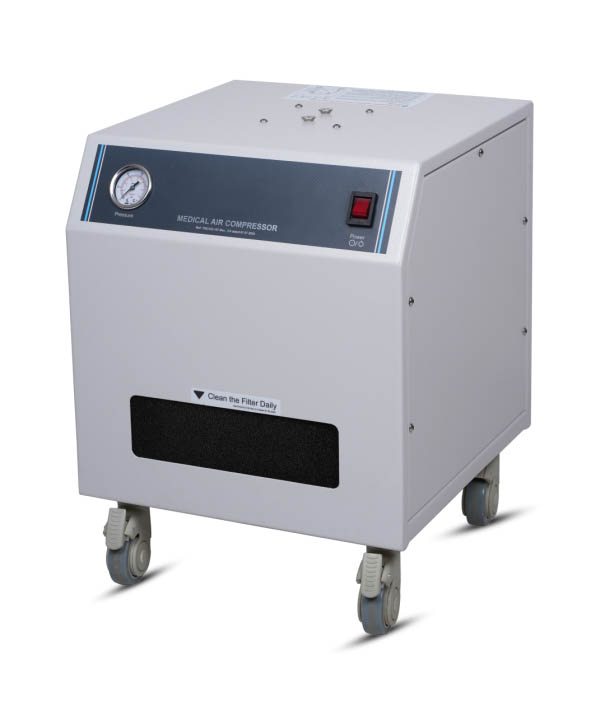

Medical Air Compressor model VA 11 manufactured by Taurus Healthcare supplies clean, dry, oil free compressed air to the medical devices like ICU Ventilators, Bubble CPAPs, Anesthesia Ventilators and High Flow Systems ( HFNCs). It has an optional electronic dryer which ensures that moisture free air is supplied to the respiratory apparatus. On request, it can also be supplied with the feature of automatic back to central pipeline system which means in case there is a failure in the wall air, the compressor will automatically switch on.
Model : VA 11
Medical Air Compressor VENTIAIR is the source of clean, dry compressed air free from oil traces for medical ventilators.With its superior pressure and flow characteristics, the compressor ensures a constant, clean, dry compressed air supply for medical ventilators. It can be used as a primary source of air or an automatic stand-by source for the case of a failure of the central source in the medical establishment. Model VA 11 can be used with all ventilators and Neonatal CPAP Systems.
Features :
- Triple Moisture Removal
- Medical grade air according to ISO 8573 .
- Low-cost operation and minimal maintenance requirements
- Quiet performance suitable for use in any ICU
Technical Specifications
| Nominal voltage and frequency | 220 VAC +/- 10% ; 50/60Hz |
| Compressor efficiency | 55 L/min @ 3,5 Bar |
| Filtration of air | 5 µm |
| Dew point depression at 40 Lit.min-1, 20°C | 5°C under the ambient temperature |
| Outlet connection | DISS 1160-A (3/4″-16 UNF) |
| Mode of the operation | Continuous |
| Automatic Back-up to central pipeline | On request |
| Noise level | ≤50 dB [A] |
| Dimensions (l x b x h) | 410 x 447 x 445 mm |
| Dimensions (l x b x h)- with wheels | 410x 447 x 546 mm |
| Weight | 46 kg |
Model : VA 12
Technical Specifications
| Nominal voltage and frequency | 220 VAC+/- 10% ; 50/60Hz |
| Compressor efficiency | 20 L/min @ 20 PSI |
| Filtration of air | 5 µm |
| Dew point depression at 40 Lit.min-1, 20°C | 5°C under the ambient temperature |
| Outlet connection | DISS 1160-A (3/4″-16 UNF) |
| Mode of the operation | Continuous |
| Automatic Back-up to central pipeline | NA |
| Dimensions (l x b x h) | 332 x 338 x 377 mm |
| Dimensions (l x b x h)- with wheels | 332x 338 x 450 mm |
| Weight | 22 Kg |
